Sawdust Dryer

FABON 2000 kg/hr Rotary Drum Dryer – High-Performance Biomass Drying System for Industrial Applications Efficient, Energy-Saving Rotary Dryer for Biomass, Feed, and Agro-Waste The FABON 2000 kg/hr Rotary Drum Dryer is an advanced, high-capacity drying system engineered to reduce moisture content in a wide range of biomass materials including sawdust, wood chips, paddy husk, rice bran, bagasse, and agricultural residues. Manufactured by FABON Engineering Pvt. Ltd., Nashik (India) — an ISO 9001:2015-certified manufacturer and exporter — this dryer combines robust design, consistent performance, and low energy consumption to deliver reliable results in industrial-scale operations. With a drying capacity of 2000 kg/hr (2 tons per hour), this system is ideal for biomass pellet plants, briquette production lines, and animal feed industries that require efficient, continuous drying for high-moisture raw materials. Working Principle The FABON Rotary Drum Dryer works on the principle of direct or indirect heat transfer through a rotating cylindrical drum. Feeding: Wet biomass is fed into the rotating drum using a conveyor or screw feeder. Drying Process: Hot air from the furnace or biomass burner passes through the drum in co-current or counter-current flow. The drum continuously rotates, lifting and showering the material through hot air for uniform drying. Discharge: The dried material exits through the discharge chute, ready for use in pelletizing or briquetting. The system ensures efficient moisture reduction (from 35–50% to below 12%) with minimal material degradation and energy wastage. Applications Biomass Pellet Production Plants Briquette Manufacturing Units Wood Processing Industries Sawdust & Wood Chip Drying Paddy Husk, Bagasse, and Corn Cob Drying Animal Feed, Alfalfa, and Grass Drying Sludge, Manure, and Fertilizer Drying Agro-Waste and Forestry Residue Drying

Technical Specifications ParameterSpecification Model FABON RD-2000 Capacity 2000 kg/hr (2 TPH) Drum Diameter 1500 mm – 1800 mm Drum Length 10 – 12 meters Material of Construction Mild Steel / SS304 (Optional) Drive Motor Power 10 HP – 15 HP Air Flow Type Co-Current / Counter-Current Heating Source Biomass Burner / Hot Air Furnace / Diesel / Gas Inlet Moisture 35% – 50% Outlet Moisture ≤ 12% Air Temperature Range 180°C – 350°C Power Requirement 25 – 30 kW Dust Collection Cyclone + Bag Filter (Optional) Control Panel Automatic / Semi-Automatic Country of Origin India Finish Industrial Powder-Coated Finish

Key Features ✅ High Drying Efficiency: Reduces moisture from 50% to below 12% with consistent performance.

✅ Energy-Saving Design: Low fuel consumption due to optimized drum design and air circulation.

✅ Heavy-Duty Construction: Made from thick MS plates with high-temperature-resistant lining.

✅ Continuous Operation: Designed for 24-hour industrial use with low maintenance.

✅ Uniform Drying: Lifting flights ensure even distribution of material across the drum surface.

✅ Multiple Heating Options: Compatible with biomass pellet burner, coal, gas, or diesel furnace.

✅ Compact & Modular Setup: Easy to install and integrate into any existing pellet or feed plant.

✅ Dust-Free Operation: Optional cyclone separator and bag filter system for clean air exhaust.

✅ Temperature Control System: Precise PID control for fuel efficiency and consistent drying.

✅ Made in India – Export Quality: Built to international standards for long-term reliability.

Advantages of FABON Rotary Drum Dryer High Throughput: Continuous operation ensures maximum drying capacity of 2 tons/hour. Uniform Output Quality: Maintains stable moisture content for pelletizing or storage. Reduced Energy Cost: Biomass burner integration lowers operational fuel cost. Versatile Use: Suitable for a variety of materials—sawdust, wood chips, rice husk, and more. Low Maintenance: Simple mechanical design with easily replaceable components.

The sawdust dryer is specially designed for drying the biomass materials, such as wood sawdust, small wood chips, rice hull, sunflower husk, peanut shells, etc.

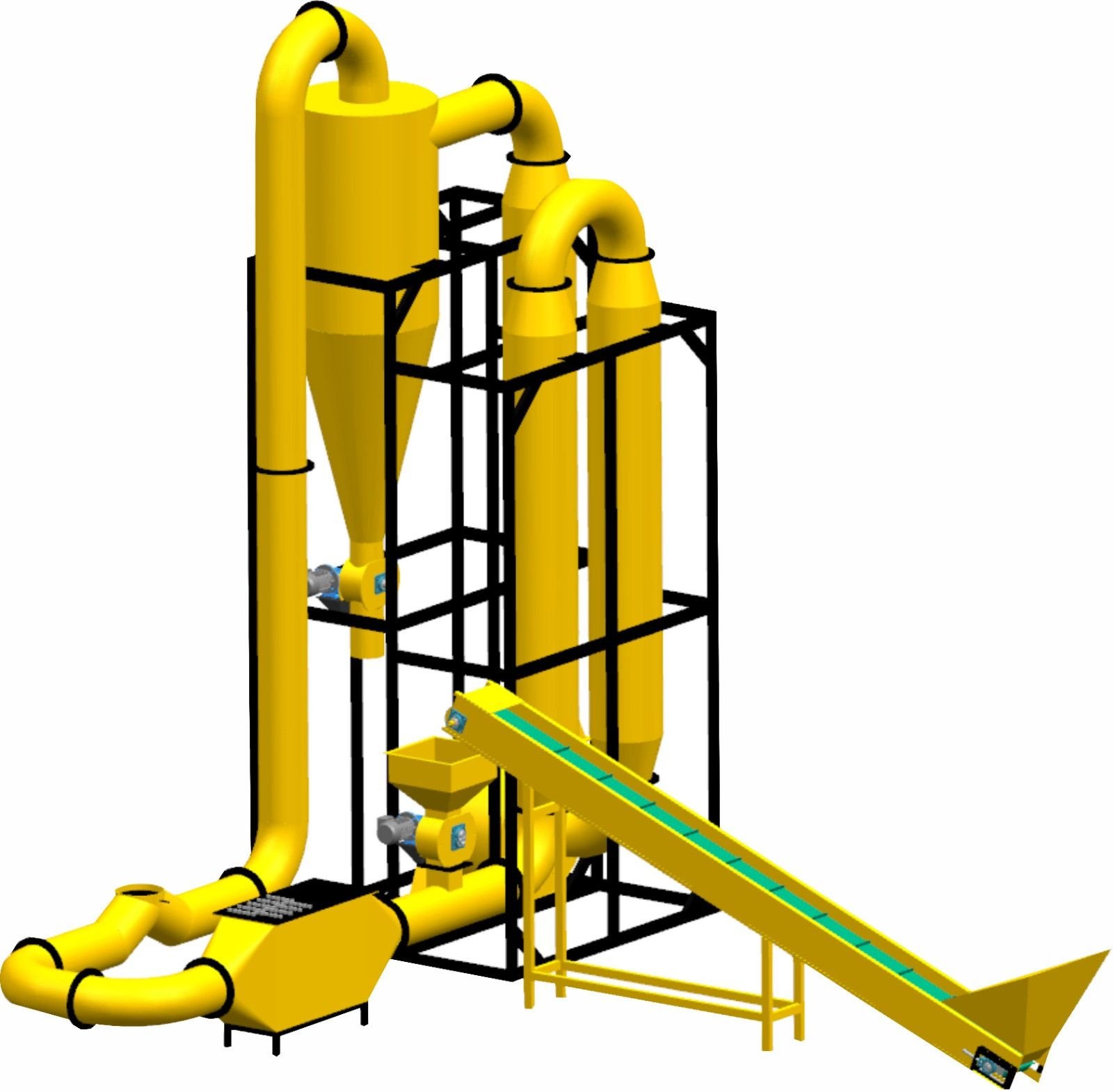

FABON Sawdust Flash Dryer – 2000 kg/hr Capacity | Biomass & Wood Drying Solution Keywords: sawdust flash dryer, biomass flash dryer, wood powder dryer, sawdust dryer 2000 kg/hr, biomass pellet plant dryer, flash drying system, industrial wood dryer, FABON flash dryer, high-efficiency biomass dryer, sawdust moisture reduction machine Overview The FABON Sawdust Flash Dryer (2000 kg/hr capacity) is an advanced, high-efficiency drying system designed for fast and uniform removal of moisture from sawdust, wood powder, and other biomass materials. Manufactured by FABON Engineering Pvt. Ltd., Nashik, India, this machine is ideal for biomass pellet plants, wood processing industries, and agro-residue drying applications. With a robust design, energy-efficient performance, and consistent output, the FABON Flash Dryer ensures that your raw material reaches the optimal moisture level (8–12%) required for efficient pelletization or briquette production. Working Principle The flash drying process involves direct contact of hot air with wet sawdust particles in a specially designed drying duct. The high-velocity airflow rapidly evaporates the surface moisture as the material is conveyed through the drying chamber. The final dried material is then separated from the air stream using a cyclone separator and bag filter system. This process ensures: Uniform drying within seconds High throughput capacity Energy-efficient operation Minimal degradation of material quality Technical Specifications ParameterDetails Model FABON-FD-2000 Capacity 2000 kg/hr (input wet sawdust) Final Moisture 8–12% (adjustable) Hot Air Source Biomass Pellet Burner / Hot Air Generator Dryer Type Pneumatic Flash Dryer (Cyclone Type) Material Handling Rotary airlock feeder and SS conveying duct Temperature Range 150°C – 350°C (controlled) Power Requirement 20 – 25 HP (Blower + Feeder) Construction Material Mild Steel / Stainless Steel (optional) Suitable Raw Materials Sawdust, wood chips, rice husk powder, bagasse, corn cobs, etc. Key Features 🔹 High Drying Efficiency The FABON Flash Dryer delivers rapid drying within a few seconds due to turbulent air flow, ensuring high moisture removal efficiency with minimal thermal losses. 🔹 Energy-Efficient Design Equipped with a biomass pellet burner or hot air generator, it provides cost-effective and sustainable heat energy, reducing dependence on fossil fuels. 🔹 Uniform Drying Quality The pneumatic drying system maintains uniform heat distribution and material suspension, ensuring consistent moisture reduction across all particles. 🔹 Low Maintenance and Long Life Built with heavy-duty steel and wear-resistant components, the dryer offers exceptional durability and minimal downtime during operation. 🔹 Compact and Space-Saving Its vertical cyclone layout and modular structure require minimal floor space, making it ideal for both existing and new pellet plant setups. 🔹 Environment-Friendly Operation Equipped with dust collectors and bag filters, it maintains clean exhaust emissions and complies with environmental safety norms. Applications The FABON Sawdust Flash Dryer 2000 kg/hr is suitable for a wide range of industries and biomass drying operations, including: Biomass Pellet Plants (for sawdust, rice husk, wood powder) Briquette Manufacturing Units Woodworking and Furniture Industries Agro-Waste Processing Units Paper and Pulp Industries Particle Board and MDF Manufacturing Plants Advantages of FABON Flash Dryer High throughput capacity – Efficient drying for 2000 kg/hr material flow. Fast drying time – Moisture reduction within seconds. Fully automatic operation – Controlled feeding, temperature, and discharge. Low operating cost – Uses biomass burner instead of expensive LPG or diesel. Modular design – Easy installation and relocation. Customizable configurations – Options available for SS, MS, or hybrid build. Seamless integration – Can be connecte
